THE ONLY Semi Synthetic Diesel Engine Oil CH-4
DESCRIPTION
Kixx HD CH-4 is a premium performance, multigrade, heavy-duty diesel engine oil specifically designed to lubricate a wide range of diesel and gasoline engines requiring API CH-4, SJ, ACEA E7 performance lubricants operating under the most severe service conditions.
APPLICATIONS
• Mixed fleets of European, North American diesel engines (high speed, four-stroke, turbocharged or naturally aspirated)
• Mixed fleets of both diesel and gasoline engines
• Mixed fleets including both old and new equipment
• Commercial road transport, including the latest electronic controlled engines.
• It meets the major diesel engine manufacturers requirements
• Stop-and-go vehicles in high soot loading service such as buses and waste collection trucks
• Off-highway vehicles and plant
PERFORMANCE STANDARDS
• API CH-4/SJ, ACEA E7-16
• MB 228.3, MAN 3275, MTU 2.0, Mack EO-M Plus, CES 20077, Cat ECF-1a Recommended
CUSTOMER BENEFITS
Minimizes fleet maintenance costs
Exceptional soot dispersion keeps fuel soot in suspension, avoiding filter plugging, cylinder head sludge, abrasive polishing wear and oil thickening.
Minimizes fleet operating costs
Excellent deposit control on valves and piston crownlands reduces oil consumption. Exceptional oxidation stability and soot control extends oil drain capability so that equipment is in service longer generating revenue. Outstanding valve train wear protection maintains fuel economy.
Extends engine life to overhaul
High level of anti-wear additive protects against valve train wear and scuffing of highly loaded parts operating under boundary lubrication conditions.
UNIQUE FEATURES
• Kixx HD CH-4 prolongs engine life and extends oil drain intervals

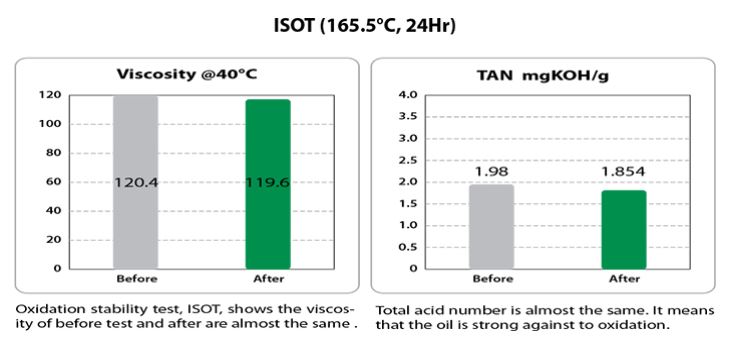

• Exceptional oxidation stability and soot control extends oil drain capability so that equipment can be in service with longer generating revenue
Diesel Engines
(Follow your vehicle manufacturer’s recommendations on oil performance levels)
Category
|
Status
|
Service
|
| CK-4 |
Current |
API Service Category CK-4 describes oils for use in high-speed four-stroke cycle diesel engines designed to meet 2017
model year on-highway and Tier 4 non-road exhaust emission standards as well as for previous model year diesel
engines. These oils are formulated for use in all applications with diesel fuels ranging in sulfur content up to 500 ppm
(0.05% by weight). However, the use of these oils with greater than 15 ppm (0.0015% by weight) sulfur fuel may impact
exhaust aftertreatment system durability and/or oil drain interval. These oils are especially effective at sustaining emission
control system durability where particulate filters and other advanced aftertreatment systems are used. API CK-4 oils
are designed to provide enhanced protection against oil oxidation, viscosity loss due to shear, and oil aeration as well as
protection against catalyst poisoning, particulate filter blocking, engine wear, piston deposits, degradation of low- and
high-temperature properties, and soot-related viscosity increase. API CK-4 oils exceed the performance criteria of API
CJ-4, CI-4 with CI-4 PLUS, CI-4, and CH-4 and can effectively lubricate engines calling for those API Service Categories.
When using CK-4 oil with higher than 15 ppm sulfur fuel, consult the engine manufacturer for service interval recommendations. |
| CJ-4 |
Current |
For high-speed four-stroke cycle diesel engines designed to meet 2010 model year on-highway and Tier 4 non-road
exhaust emission standards as well as for previous model year diesel engines. These oils are formulated for use in all
applications with diesel fuels ranging in sulfur content up to 500 ppm (0.05% by weight). However, the use of these oils
with greater than 15 ppm (0.0015% by weight) sulfur fuel may impact exhaust aftertreatment system durability and/or
drain interval. API CJ-4 oils exceed the performance criteria of API CI-4 with CI-4 PLUS, CI-4, CH-4, CG-4 and CF-4 and
can effectively lubricate engines calling for those API Service Categories. When using CJ-4 oil with higher than 15 ppm
sulfur fuel, consult the engine manufacturer for service interval. |
| CI-4 |
Current |
Introduced in 2002. For high-speed, four-stroke engines designed to meet 2004 exhaust emission standards implemented
in 2002. CI-4 oils are formulated to sustain engine durability where exhaust gas recirculation (EGR) is used and are
intended for use with diesel fuels ranging in sulfur content up to 0.5% weight. Can be used in place of CD, CE, CF-4,
CG-4, and CH-4 oils. Some CI-4 oils may also qualify for the CI-4 PLUS designation. |
| CH-4 |
Current |
Introduced in 1998. For high-speed, four-stroke engines designed to meet 1998 exhaust emission standards. CH-4 oils
are specifically compounded for use with diesel fuels ranging in sulfur content up to 0.5% weight. Can be used in place
of CD, CE, CF-4, and CG-4 oils. |
| CG-4 |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 2009. |
| CF-4 |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 2009. |
| CF-2 |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 2009. Two-stroke cycle engines
may have different lubrication requirements than four-stroke engines, so the manufacturer should be
contacted for current lubrication recommendations. |
| CF |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 2009. Later “C” category oils
are usually suitable or preferred for diesel automotive engines for which “CF” oils were specified. Older
equipment and/or two-stroke diesel engines, especially those calling for monograde products, may
however require “CF” category oil. |
| CE |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 1994. |
| CD-II |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 1994. |
| CD |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered automotive engines built after 1994. |
| CC |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered engines built after 1990. |
| CB |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered engines built after 1961. |
| CA |
Obsolete |
CAUTION: Not suitable for use in most diesel-powered engines built after 1959. |
Source: https://www.api.org/products-and-services/engine-oil/eolcs-categories-and-classifications/oil-categories#tab-diesel-c-categories
